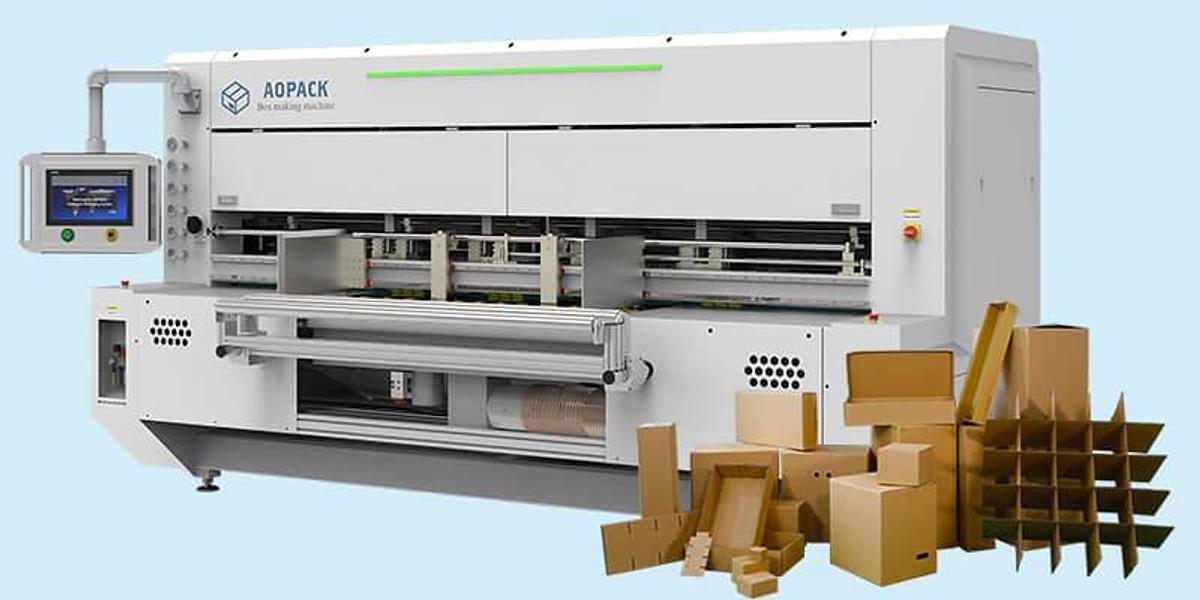

Aopack Boxmaker model BM 3000 HD

Click on the You tube link below. It is only a 1 minute video to check out.

The BM 3000 HD model that can convert triple wall corrugated.

We are the North American agent for this product line. I have more videos and information if you want to see more info.

You Tube Video Link: https://youtu.be/Blef8No3awg

Heavy Duty Corrugated Box Maker Machine BM3000-HD Specification

• Cardboard TypeSingle/Double/ Triple wall(AAA Heavy Duty Cardboard)
• Cross Cutting Knife
• Cardboard Thickness 2-16mm
• Power Supply380V±10%，Max 10kW, 50/60Hz
• Cardboard Gram≤2400g/m²
• Air Pressure0.6-0.7Mpa
• Max. Board Size3000mm Width * Unlimited Length
• Dimension3820(W)* 2060(L)* 1970(H)mm
• Min. Board Size300mm Width * 660mm Length
• Gross WeightAppr. 4500kg
• Production CapacityAppr. 10-16pcs/minute. Depends on Box Size and Style.
• Handle Hole on box sides150(L)*300(W)mm
• Slotting Knife2pc * 500mm Length
• Glue Flap Crush√
• Vertical Creasing Knife 4 (With Knife Sharpening Function)
• Air Consumption90L/min
• Scoring / Creasing Wheel
• 4+4Box Styles150+

1-6s Quick Changeover Time

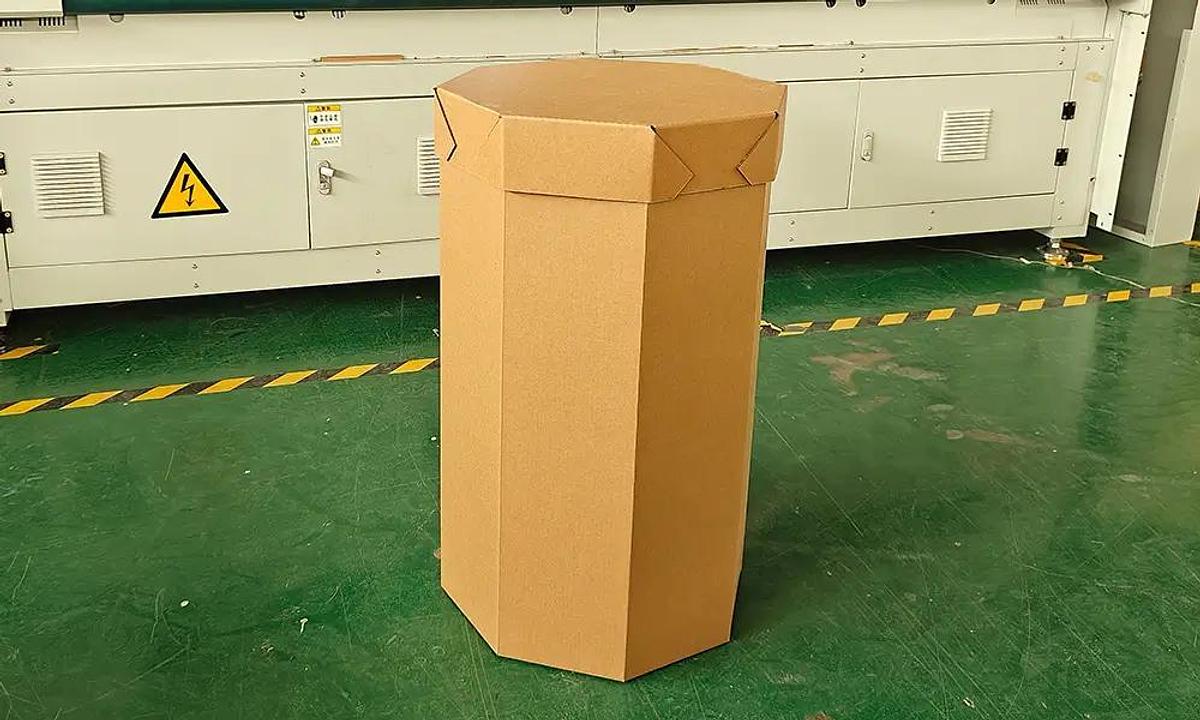

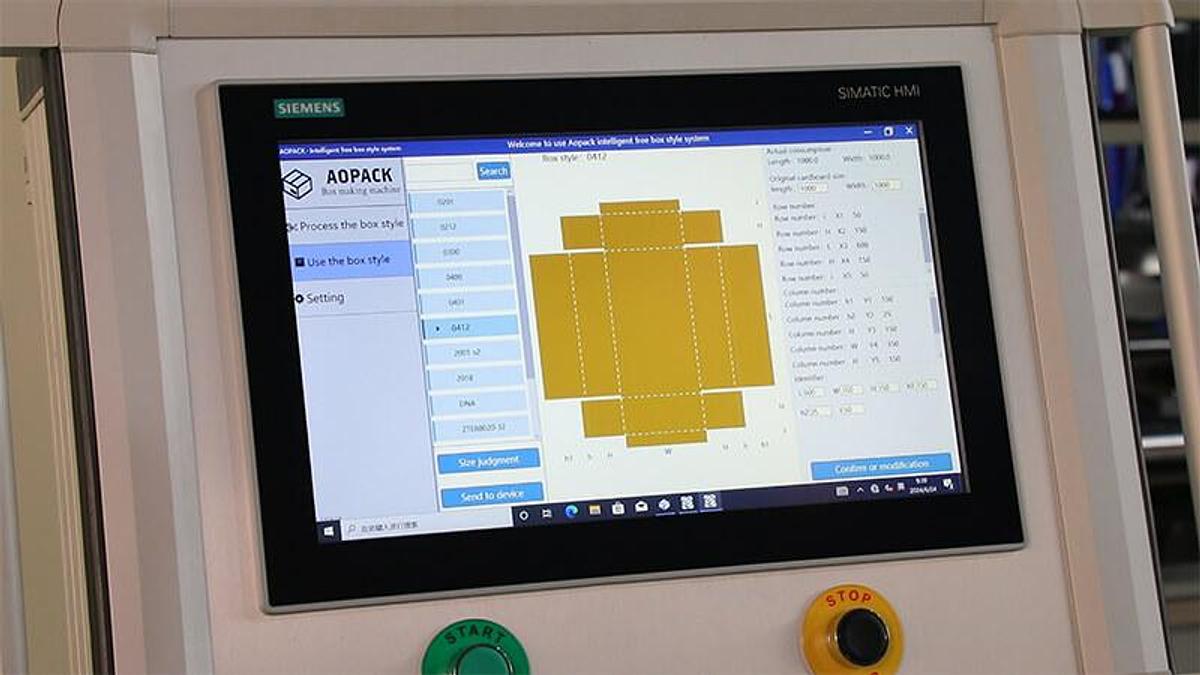

Over 150 Carton Box Styles

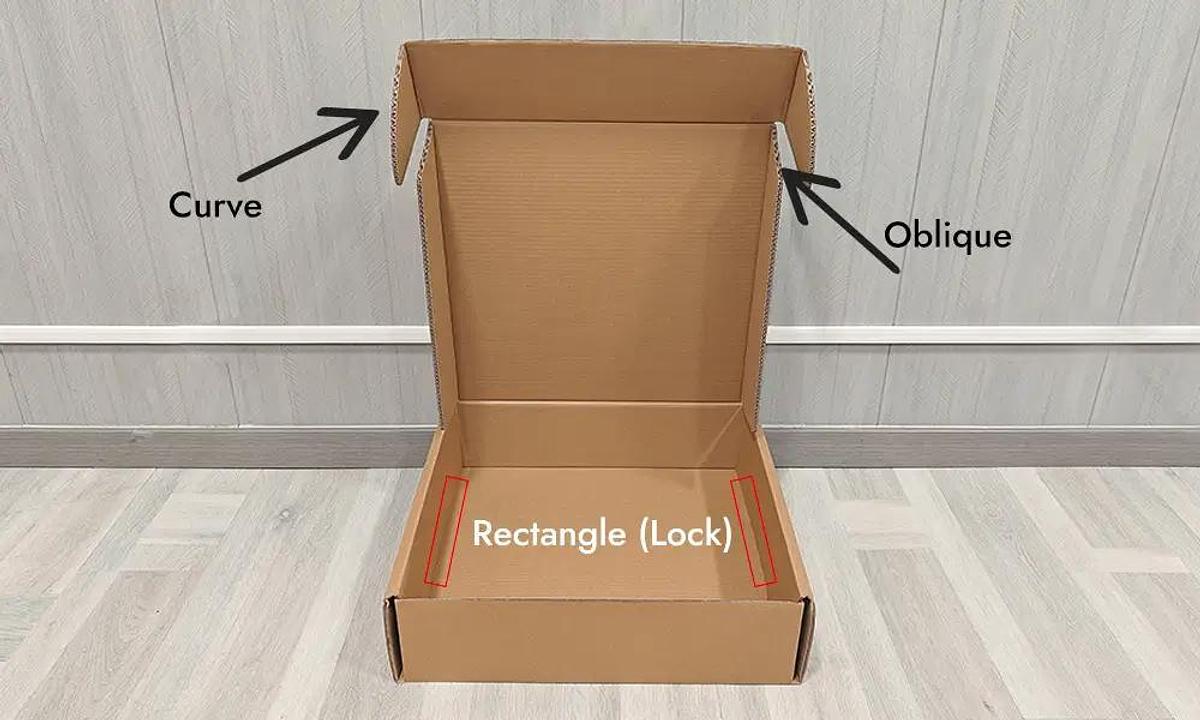

Irregular Shape Digital Cutting

E to AAA Corrugated Flute

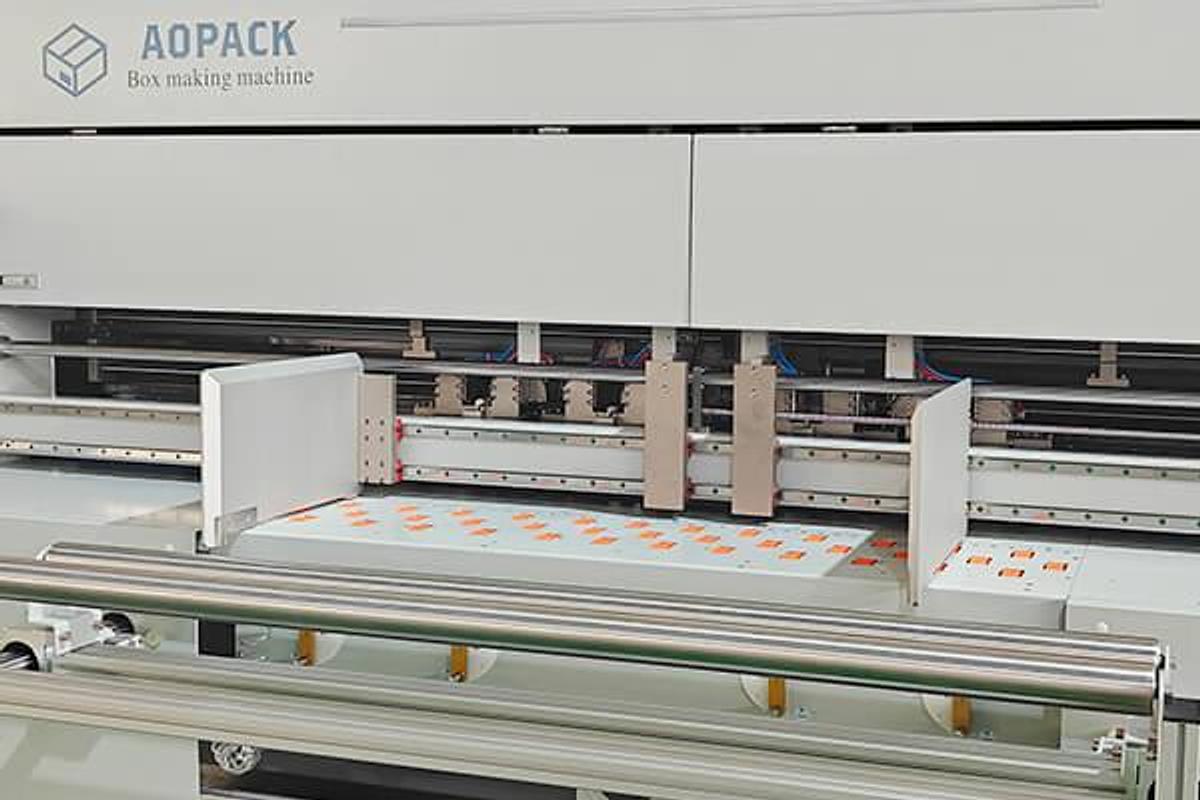

Cardboard Feeding

• Sheets from E flute to AAA flute
• Sheets thickness from 2mm to 16mm, Up to 2400g/sqm
• Sheets width from 300mm to 3000mm

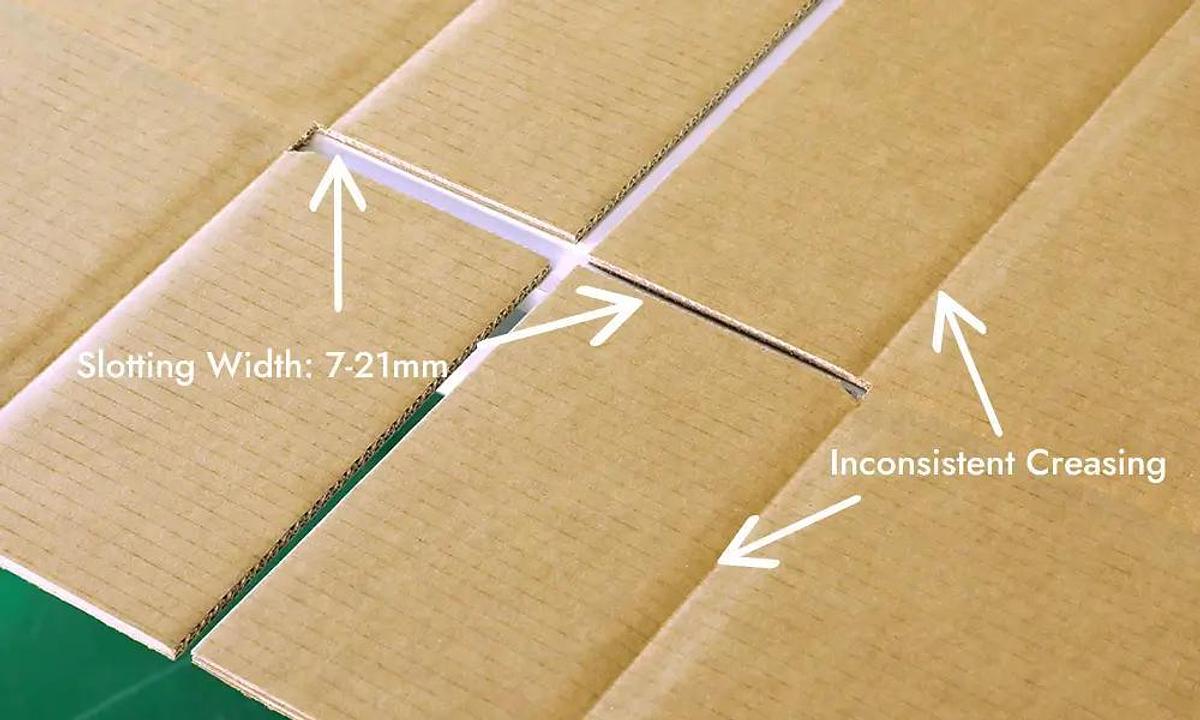

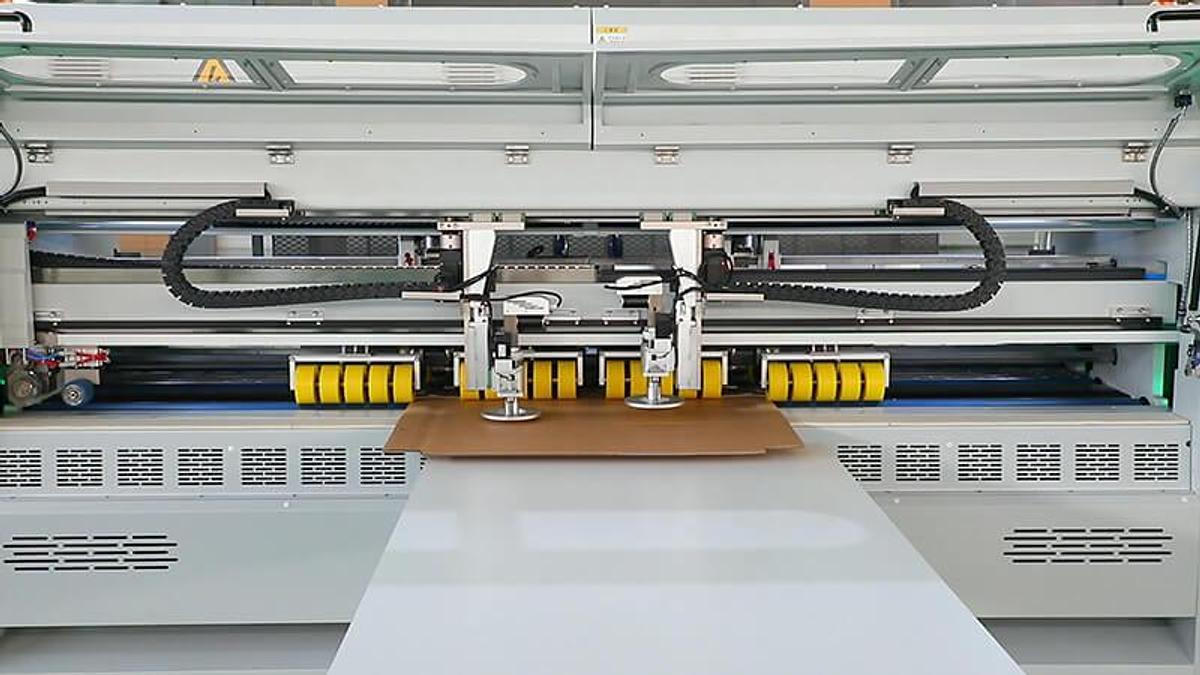

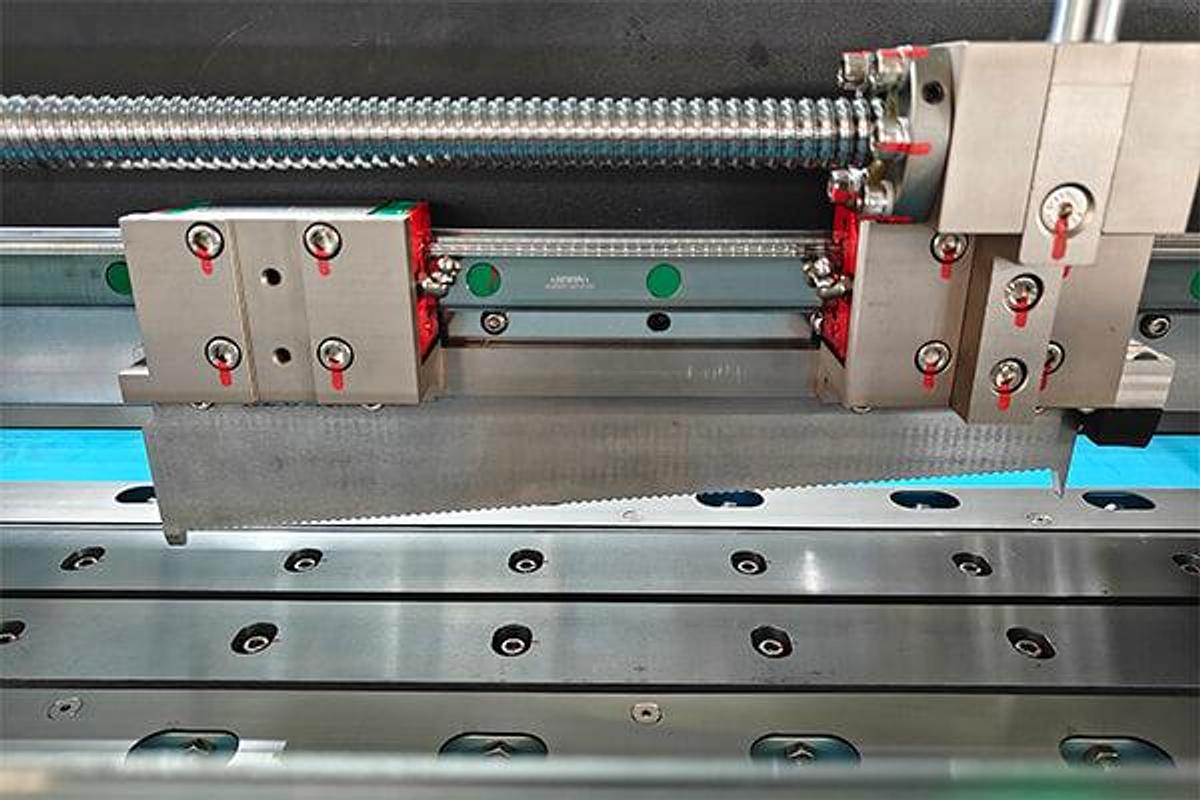

Horizontal Slotting & Scoring

• Two 500mm symmetrical slotting knives
• Slotting knife and creasing beam integrated design
• Slotting width from 7mm to 21mm

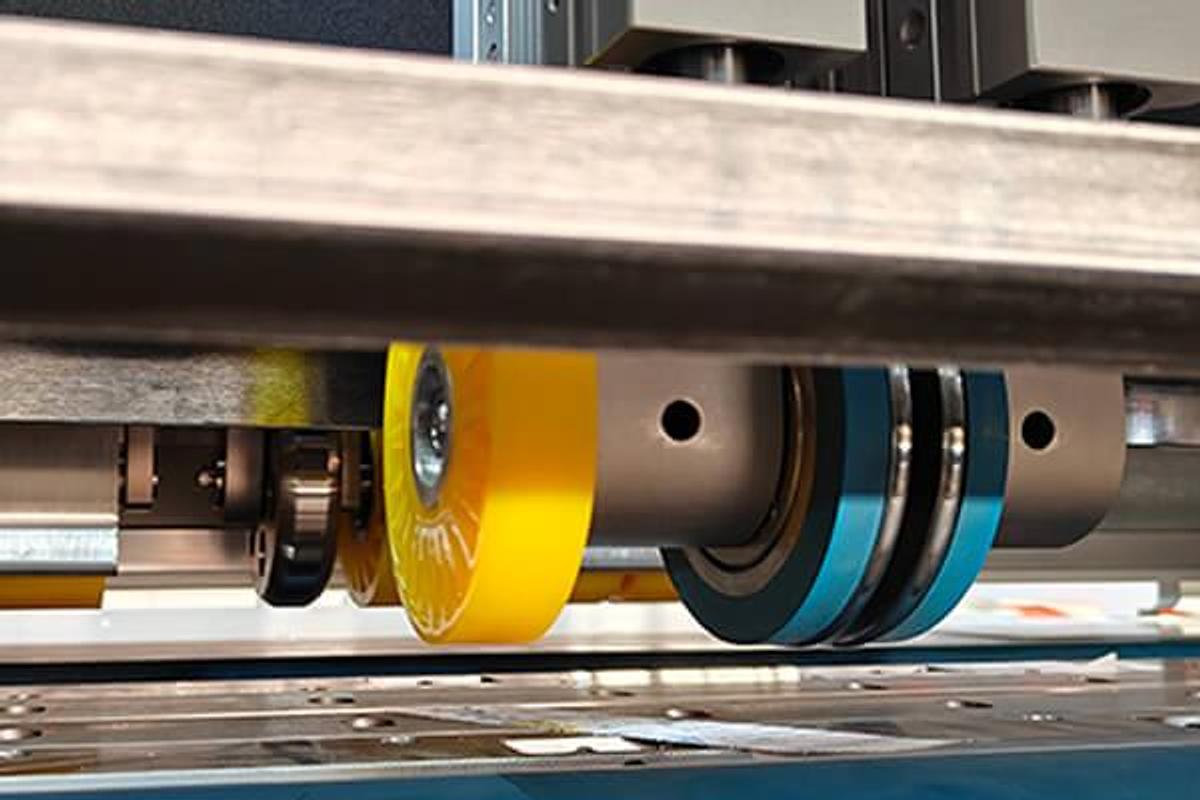

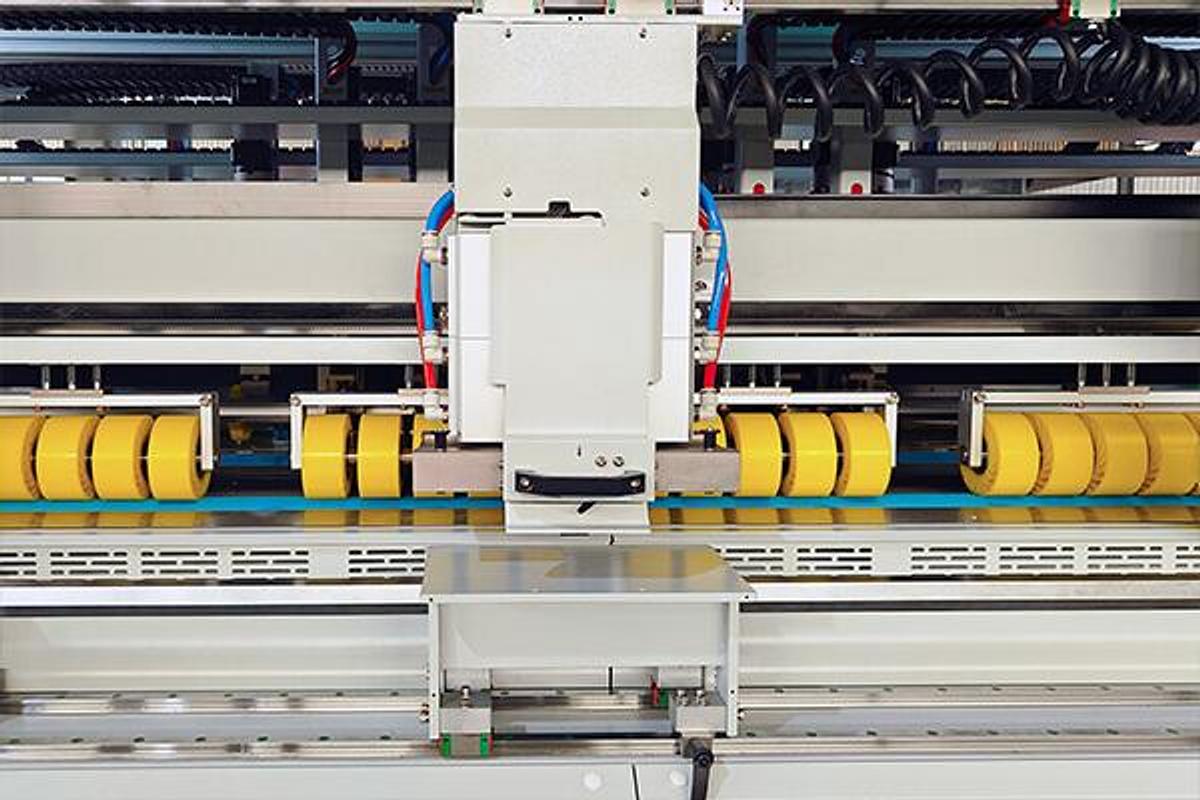

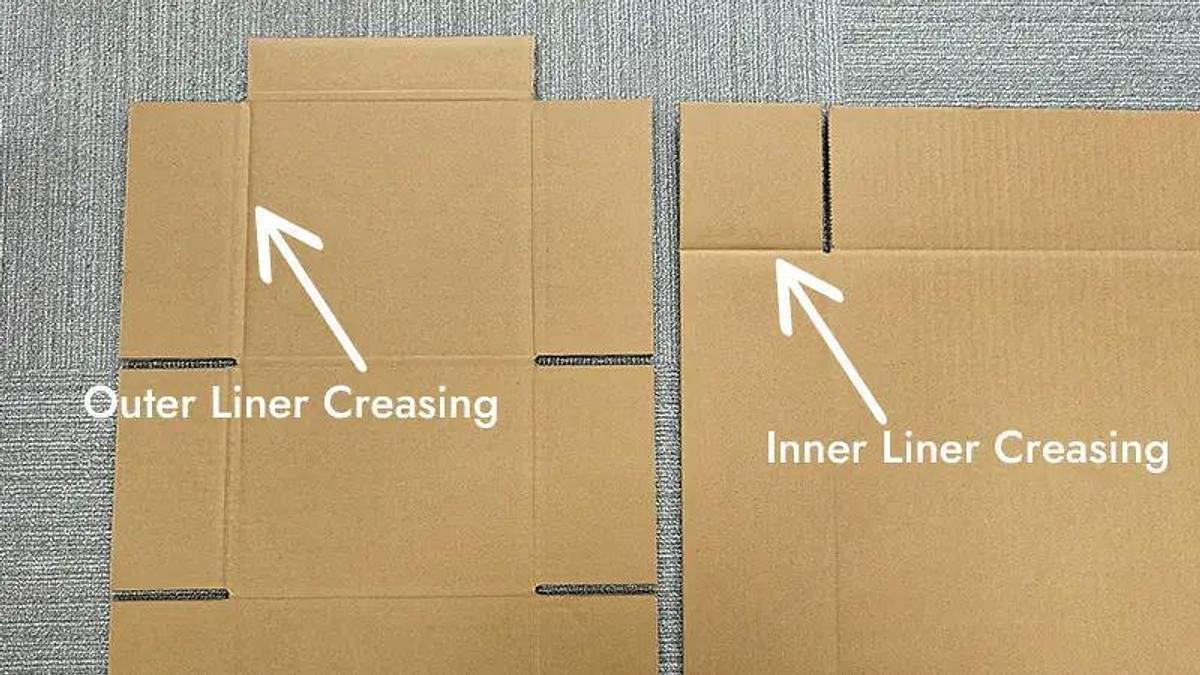

Vertical Creasing System

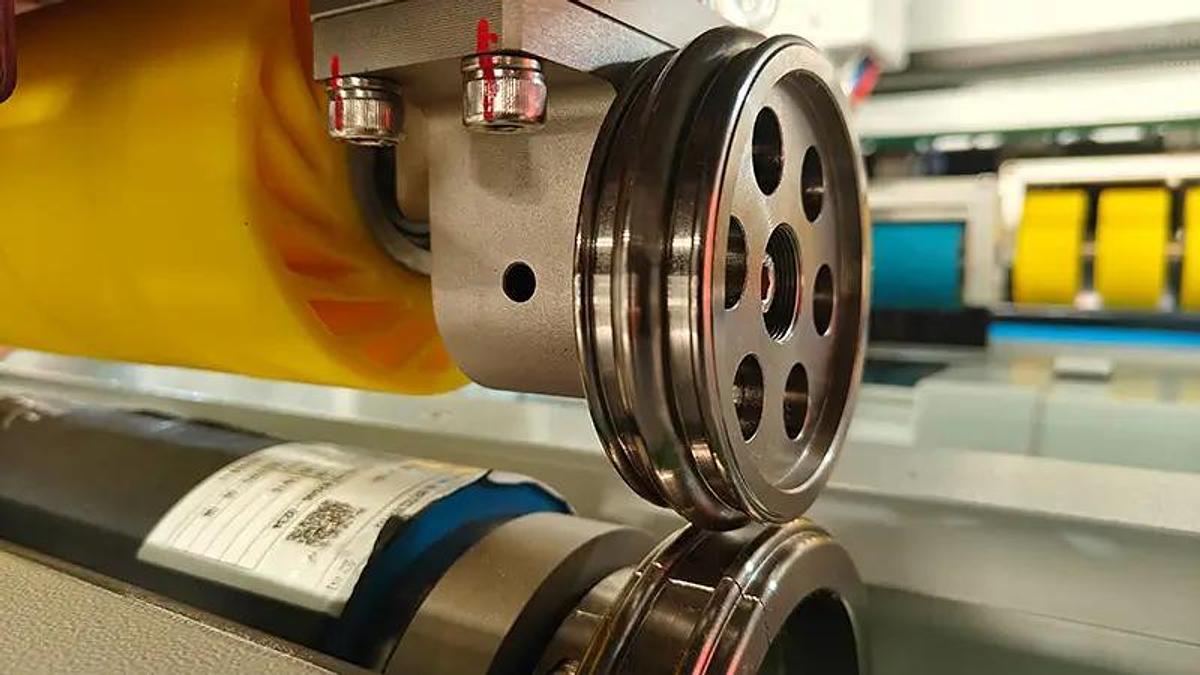

• Scoring/Creasing wheel : 4+4
• With pre-creasing wheels, the carton box is easy to fold.

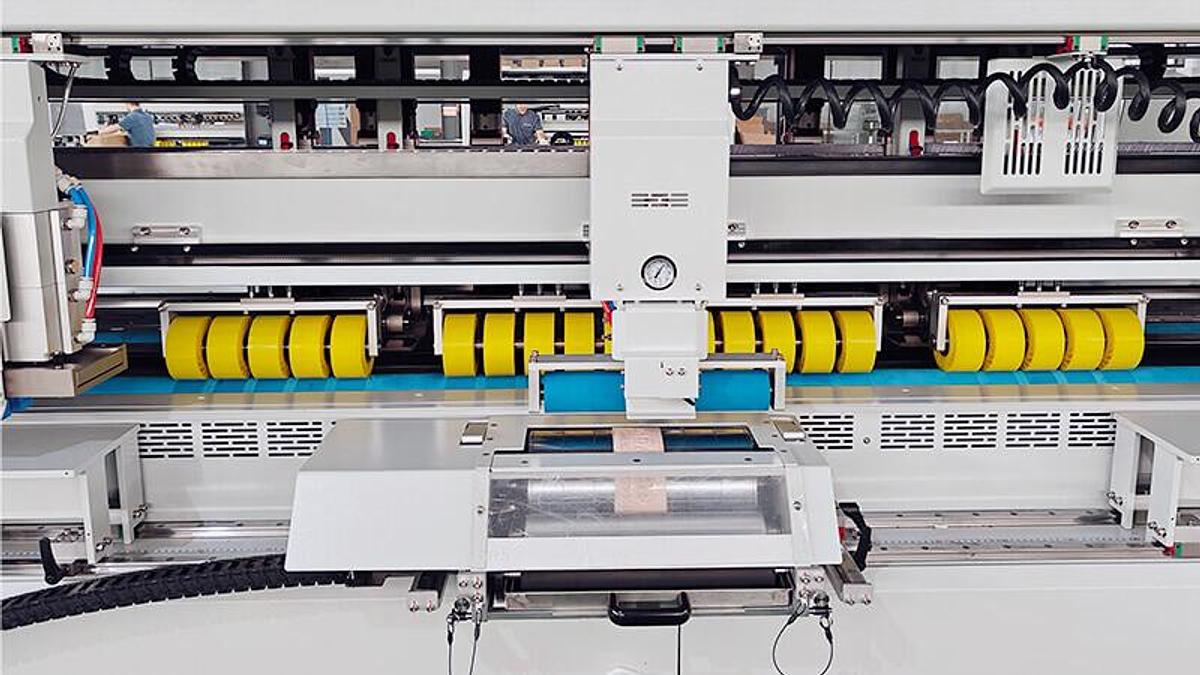

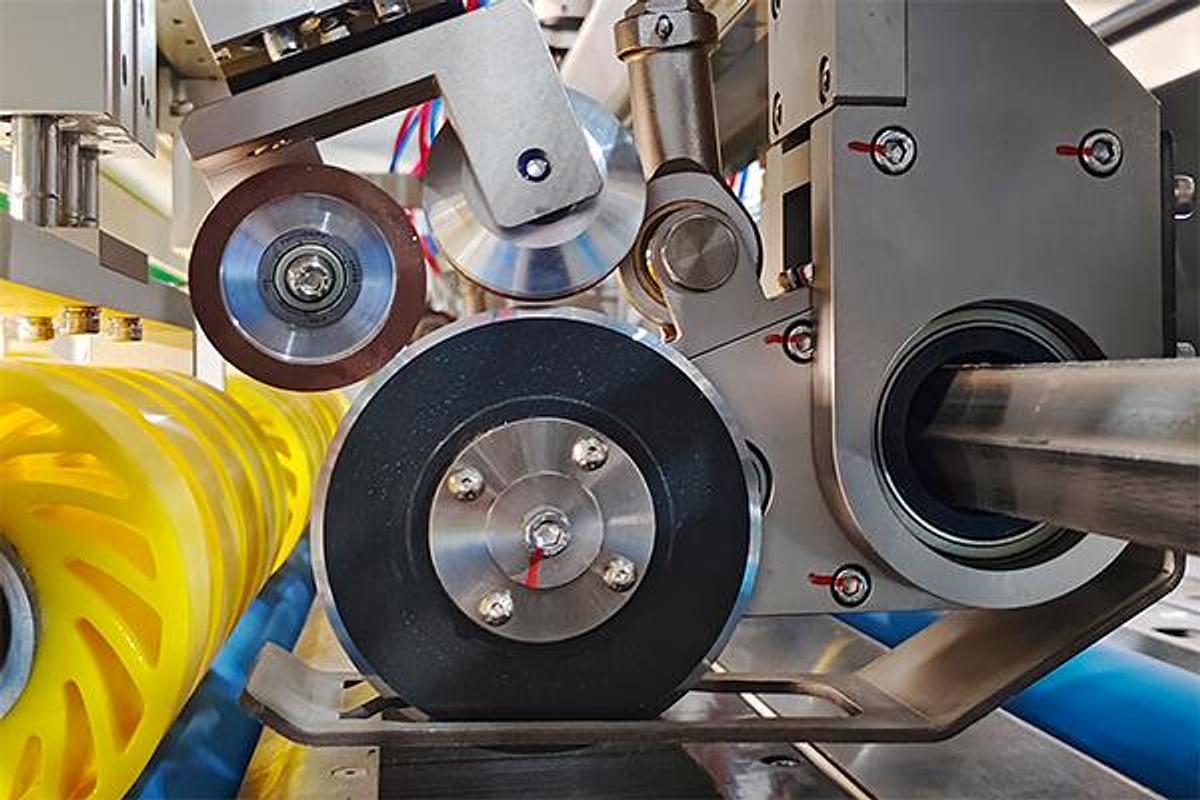

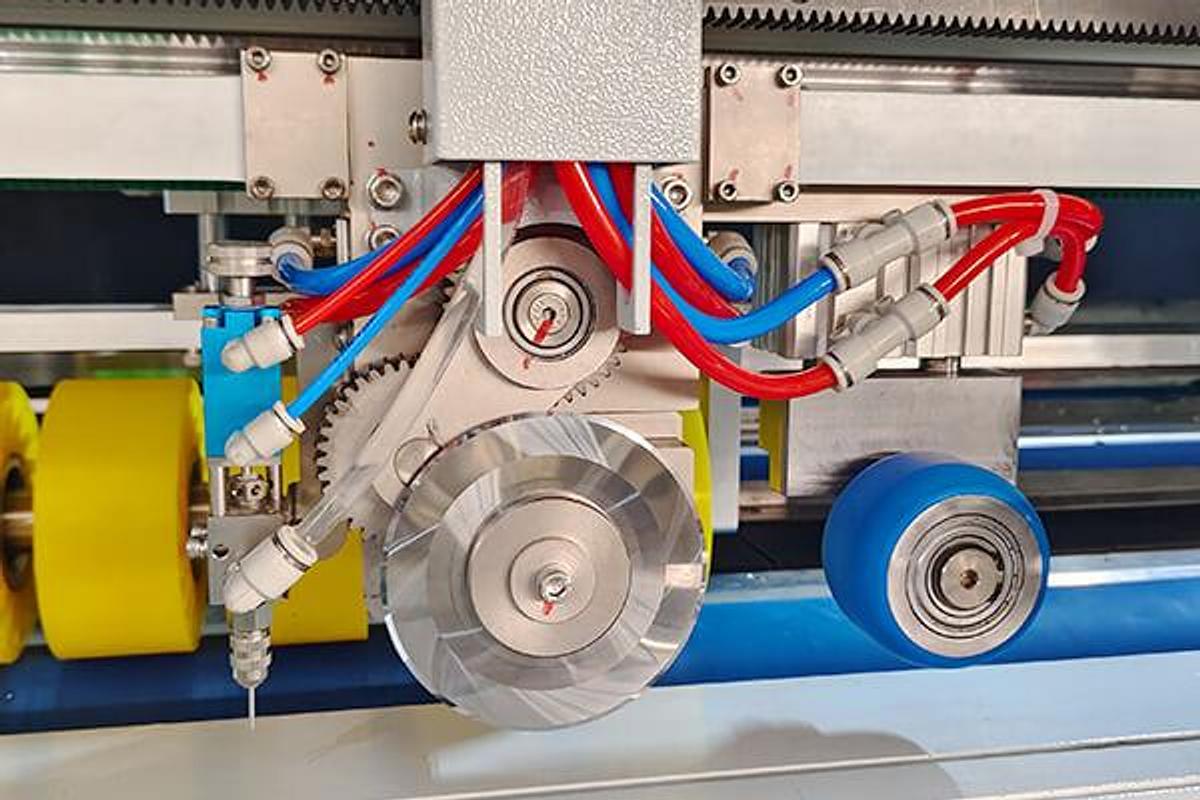

Vertical Slitting & Auto Sharpening

• 4 Vertical slitting knives,  rotated by the servo motor to make the side of the carton box  more beautiful and flat
• Knife sharpening function, the slitting knife has a longer service life
•

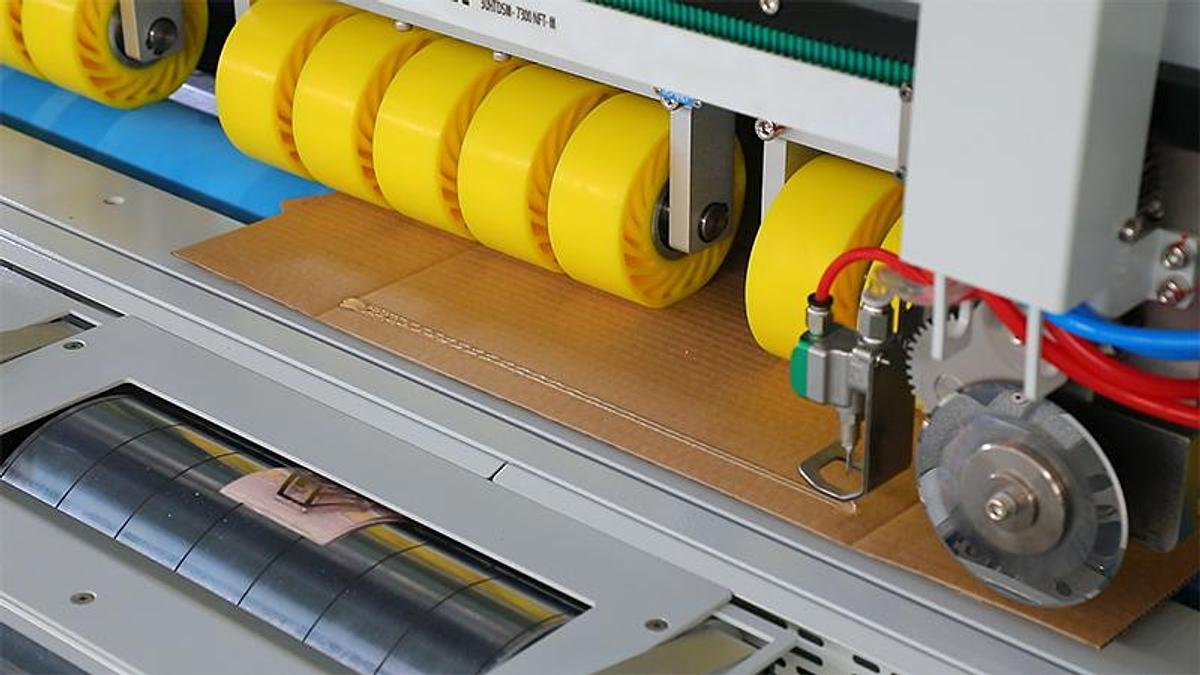

Gluing, Cross Cutting, Glue Flap Crush System

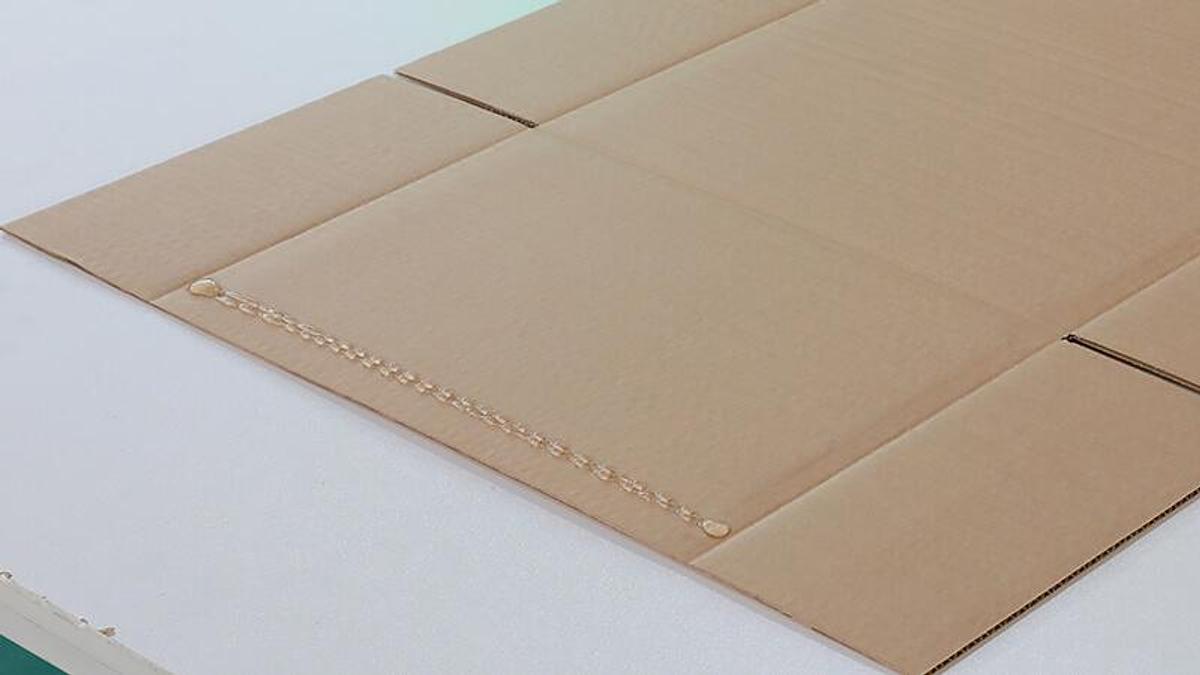

• Inline cold gluing auto application, no need for extra gluing machine.
• Cut off extra cardboard without an additional paper separator.

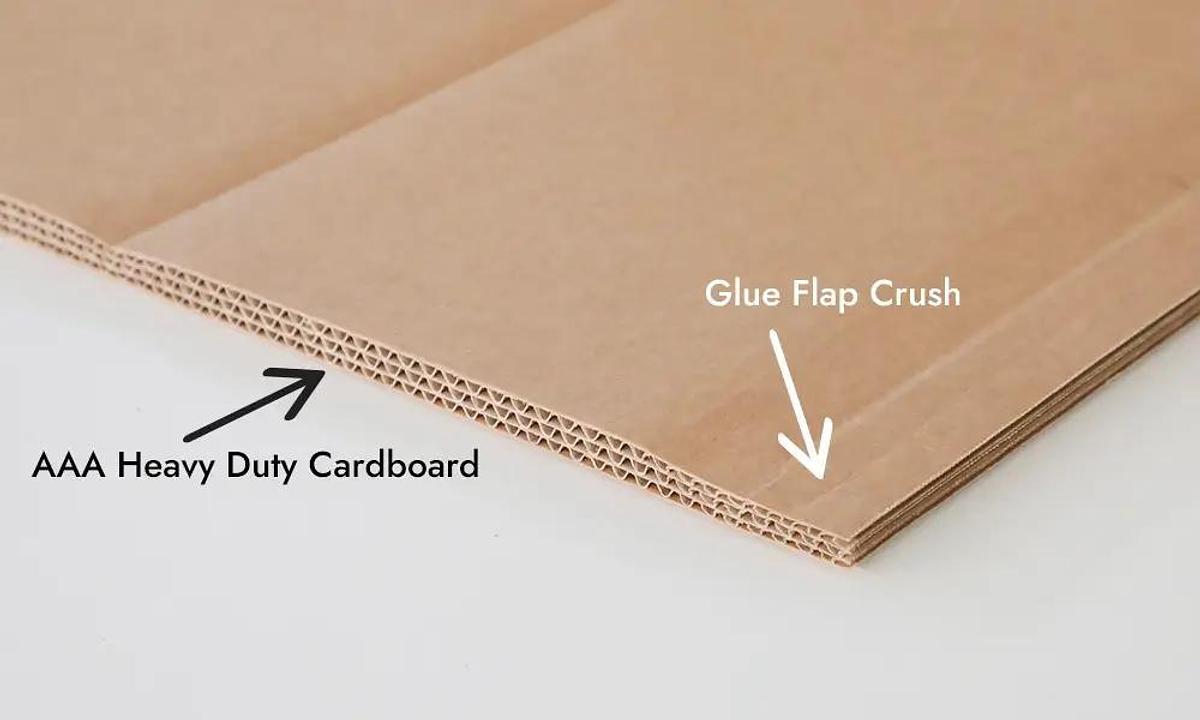

• The glue flap crash function makes nailing boxes more convenient.

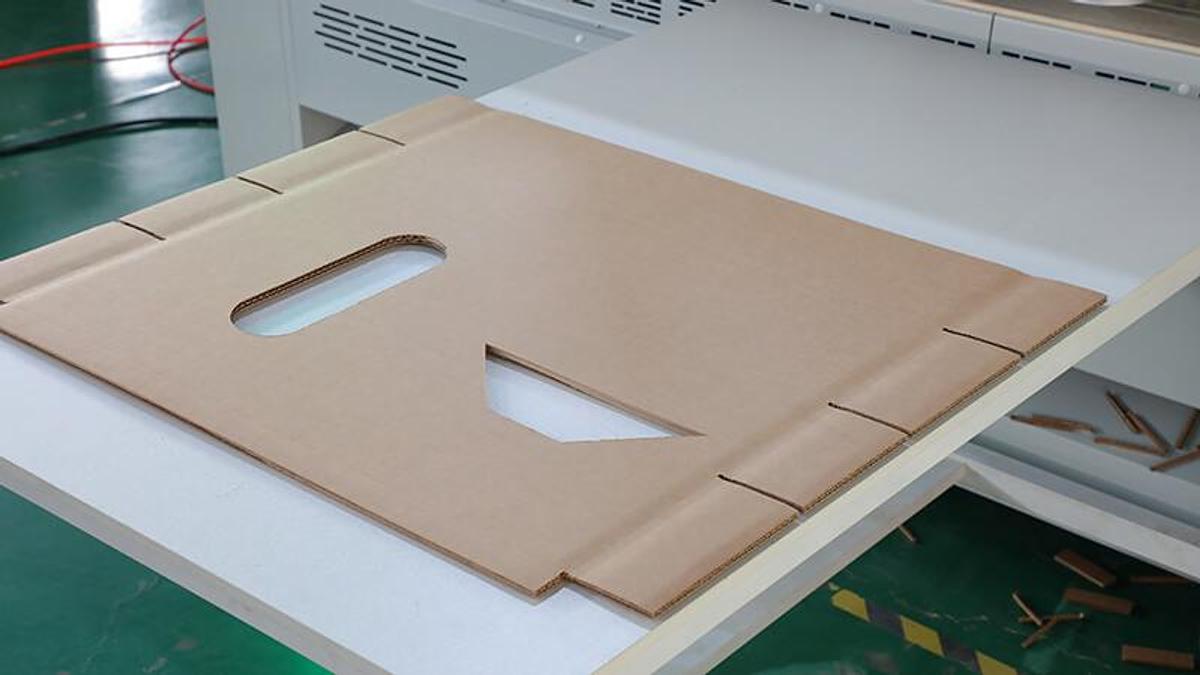

Die Cutting System

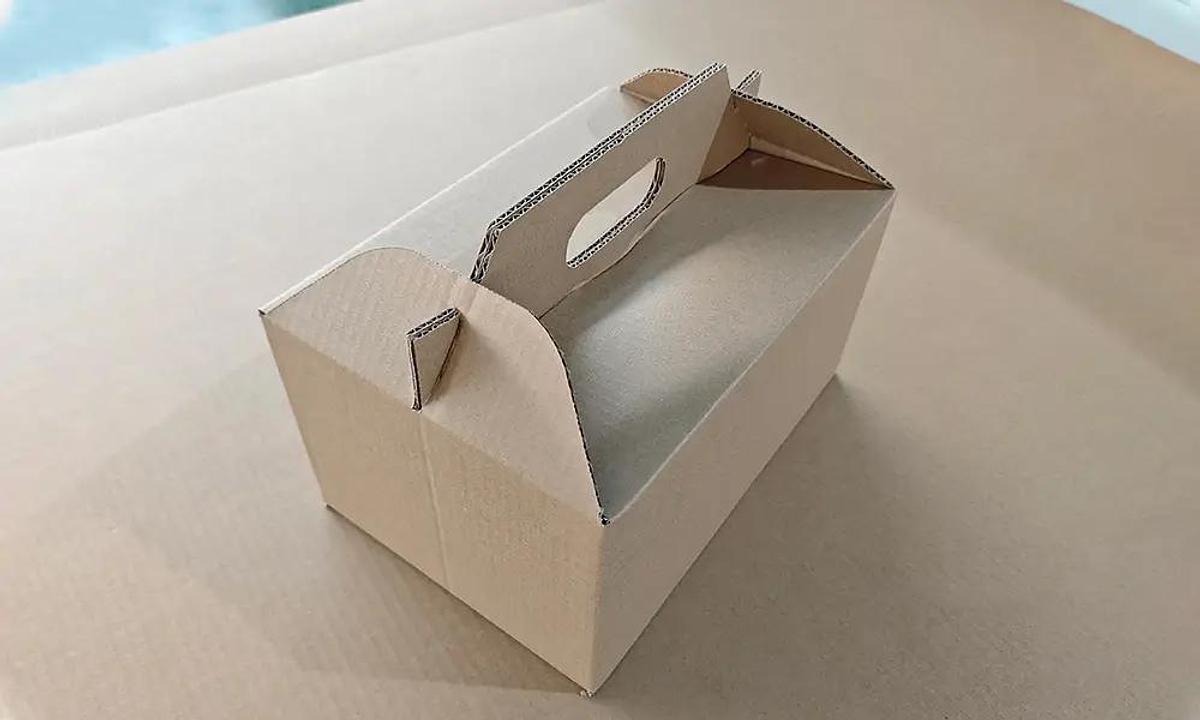

• Hand hole, vent hole, special-shaped rounded corners.
• Cheap module and easy to replace
