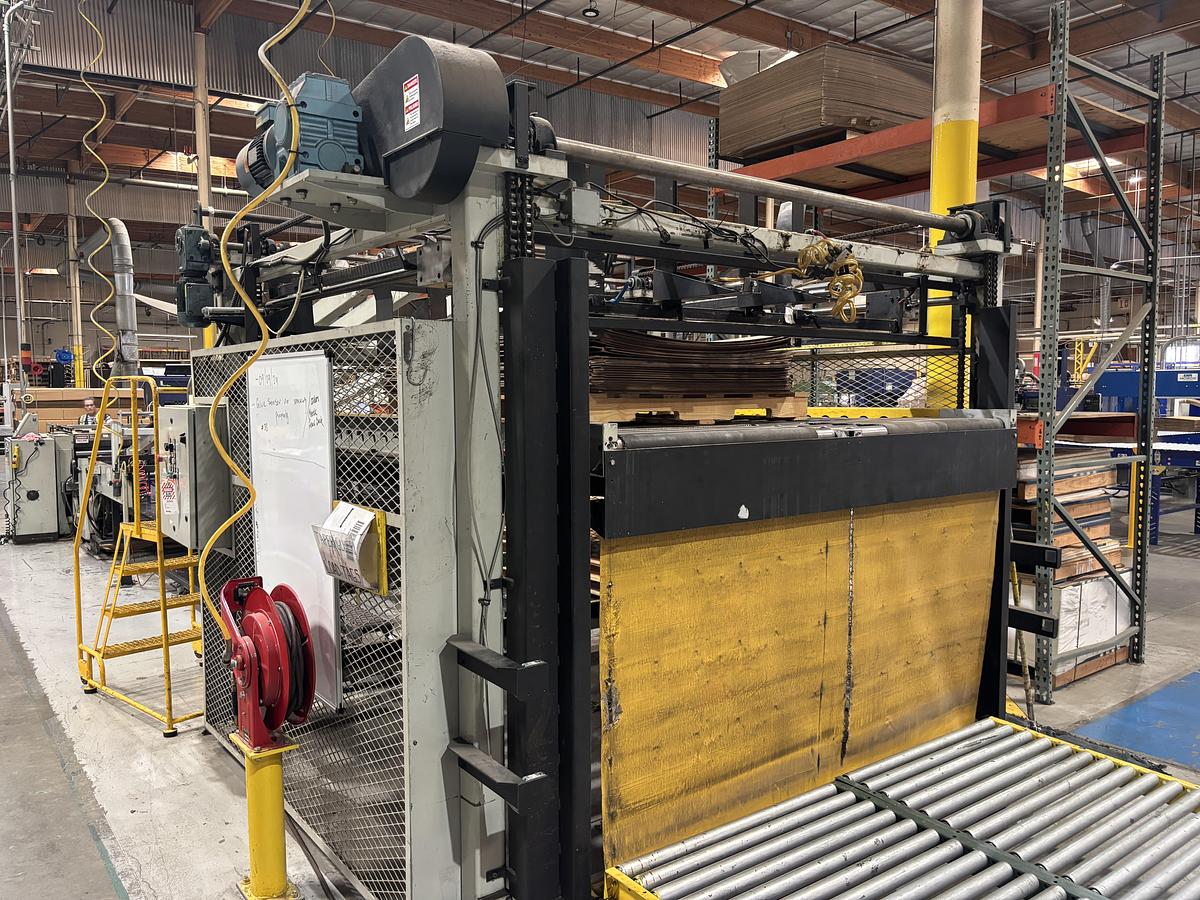

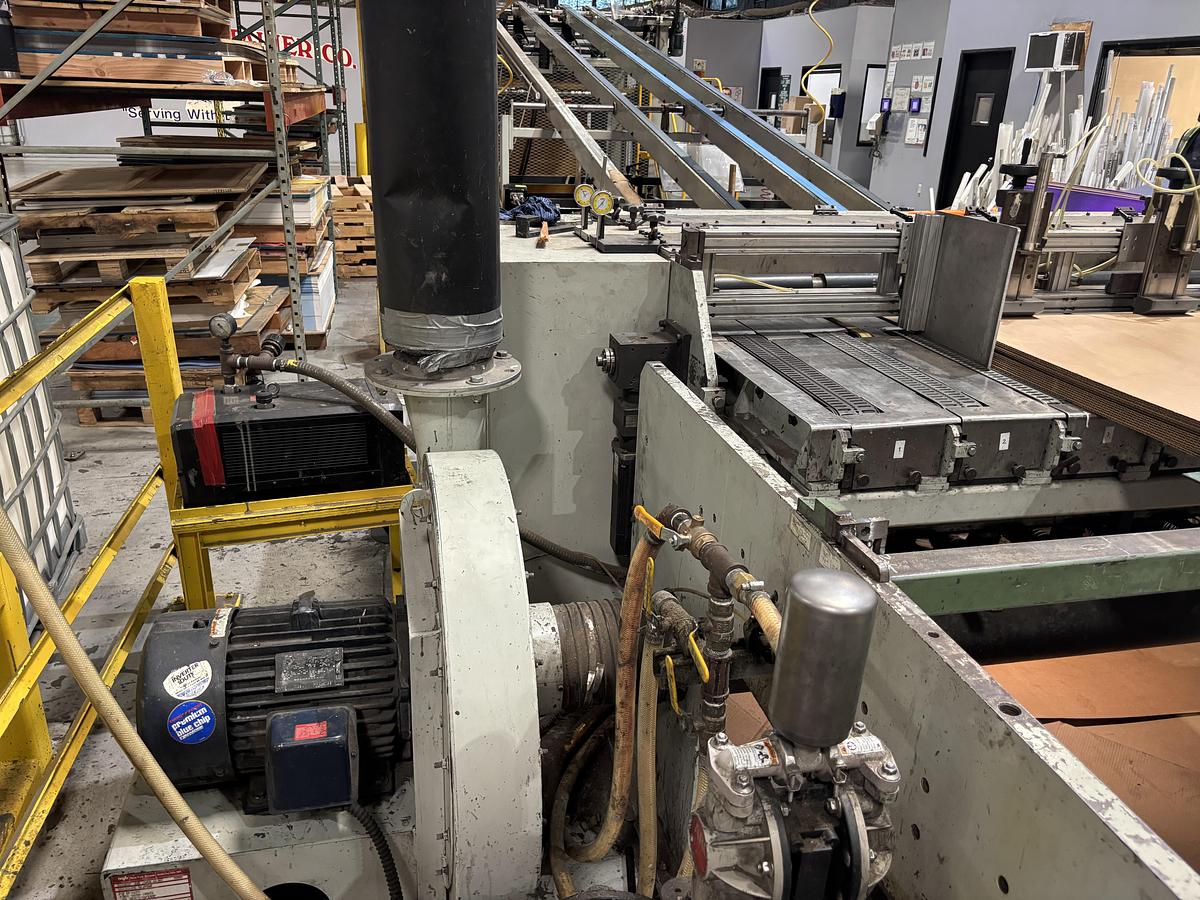

65" x 86" Automatan Laminator

Automatan Laminator model EM, 460 volts, in operation

• 82” x 80” standard downstacker, non-stop & powered outfeed conveyors
• Litho feed up to .024”
• Touch screen control panel
• Vacuum & band roll system
• Board feeder
• Litho sheet preload system
• Lead edge litho feeder

Max sheet format: 1070 x 2300 mm / 42” x 90”,

Minimum board Size: 500x 400 mm / 19 x 15”

Maximum Board Thickness: 20 mm / 0.78”

Minimum Board Thickness: 1.5 mm / 0.59

Maximum label Size: 990 x 1650 mm / 38 X 64”

Minimum label Size: 250 x 150 mm / 9.8 x 5.9”

Maximum label Thickness: 0.600 mm

Minimum label Thickness: 0.075 mm

Overall length : 15 m / 49 feet

Overall width : 3.2 m / 10 feet
