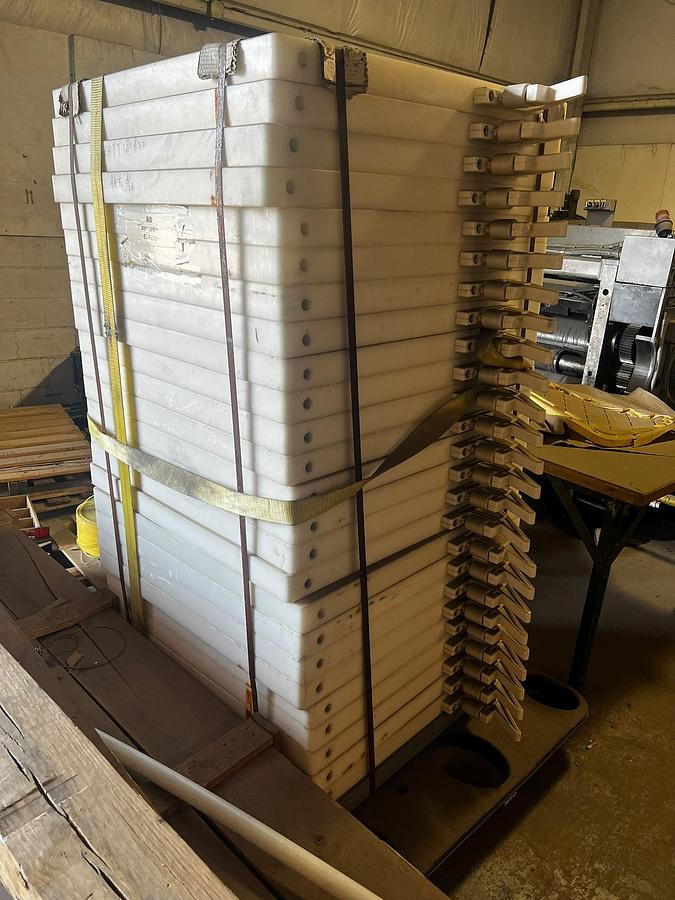

New Waste Water Filter Press machine

Waste Water Filter Press machine with 23 cartridges, Hydraulic pressure system.

220 volts

34" x 34" Cartridges

Control System

Closing Method -Electrical Hydraulic

Cake Discharging -Manual

Cabinet Element -Schneider

Beam Material High quality carbon steel Q235

Inlet - Single Inlets

Filter Plate

Plate Type Chamber Filter Plate with Material PP

Feed Method Center Feed

Liquid Discharging Method Open Discharge (Two Sides)

Feeding Pressure 1 MPa

Hydraulic System

Pressure Compensation 16 MPa/Auto

Pressure Maintenance 16-18 MPa

Cylinder Material # 45

Cylinder Process Chromeplate

Oil Hose

High Pressure 36 MPa

Low Pressure 22 MPa

Filter Cloth

Filter Cloth Material PP or Chinlon

Filtering Precision Customized

Acid Resistance Good

Alkali Resistance Good

Abrasive Resistance Good

Temperature Resistance 90°C

Detail

1 Model XMY 30/870

2 Plate Quantity 23+1+1 pcs

3 External Plate Length 870 mm

4 Inner Plate Length 800 mm

5 Plate Thickness 55 mm

6 Thickness Of Cake 30 mm

7 Filtering Volume 460 L

8 Filtering Area 30 m2

9 Power 2.2 kw(Hydraulic)

Dimension

Length (L) 3400 mm

11 Width (W) 1400 mm

12 Height (L) 1300 mm
